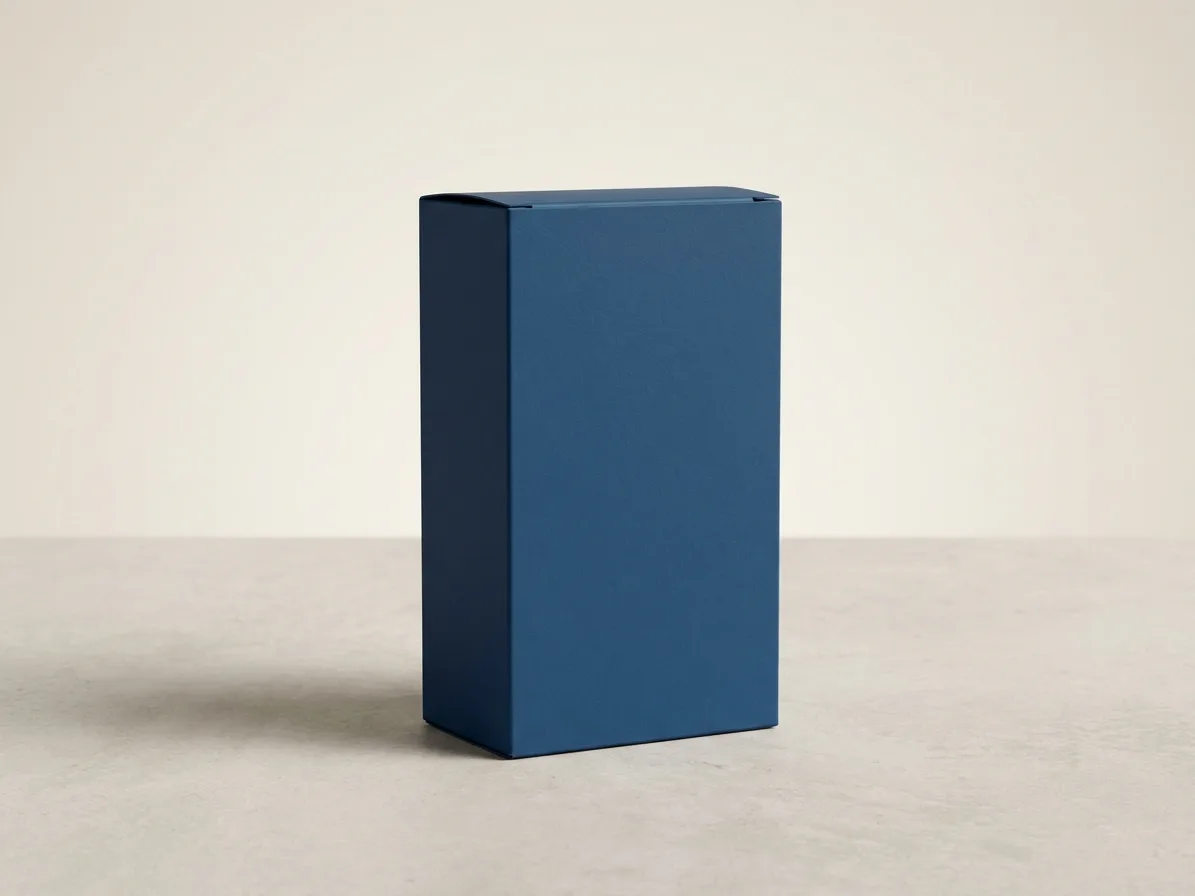

Auto Lock Bottom Box
A pre-glued base that locks flat as the carton is opened — the right construction for heavier contents and fast packing.
- Folding carton
- Custom sizes available
- Made in the UAE
- Base panels pre-glued at the factory
- Locks square in a single motion
- Substantially stronger base than a tucked bottom
- No tape required at the base
- Ships flat despite the pre-glued base
Every order is manufactured to your specification. Send your sizes, artwork or a reference sample and we will quote materials, construction and finishing.
Reference: VAL-FC-ALB
About Auto Lock Bottom Box

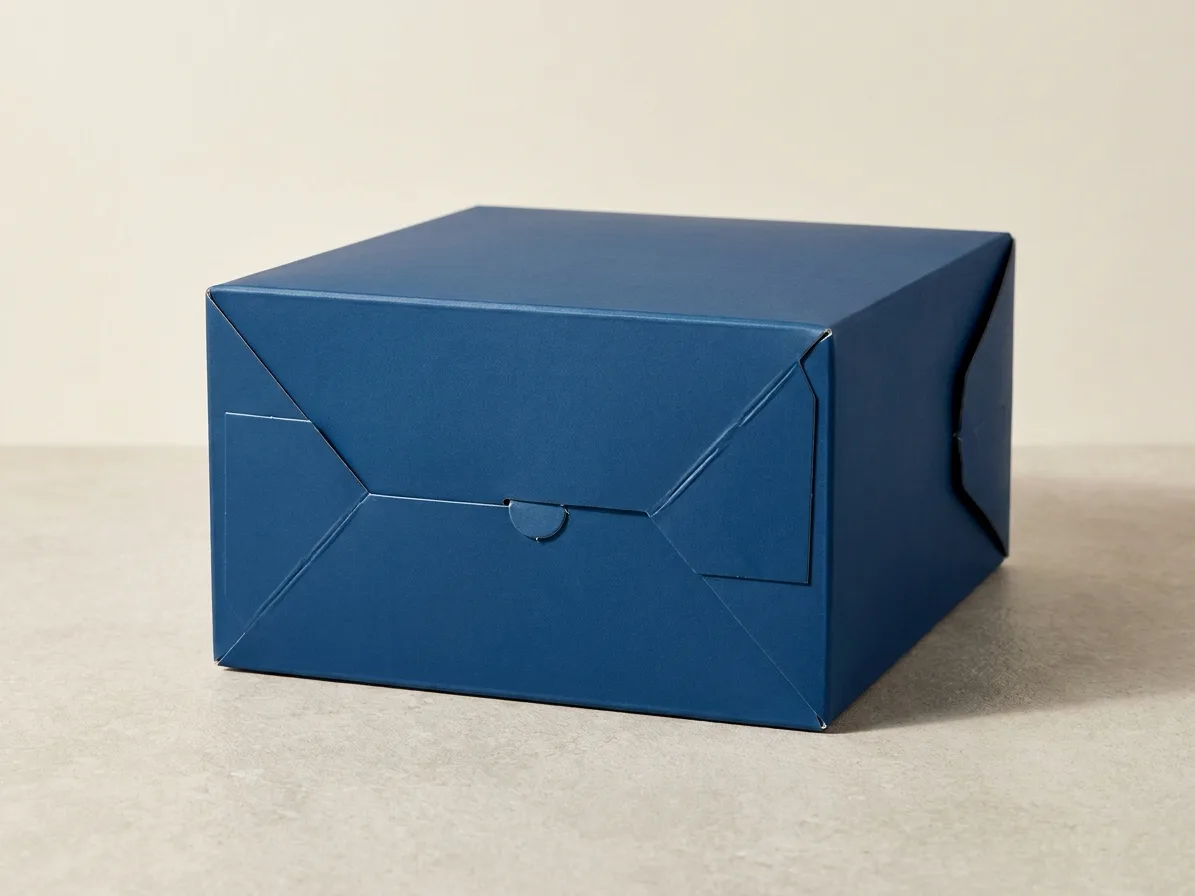

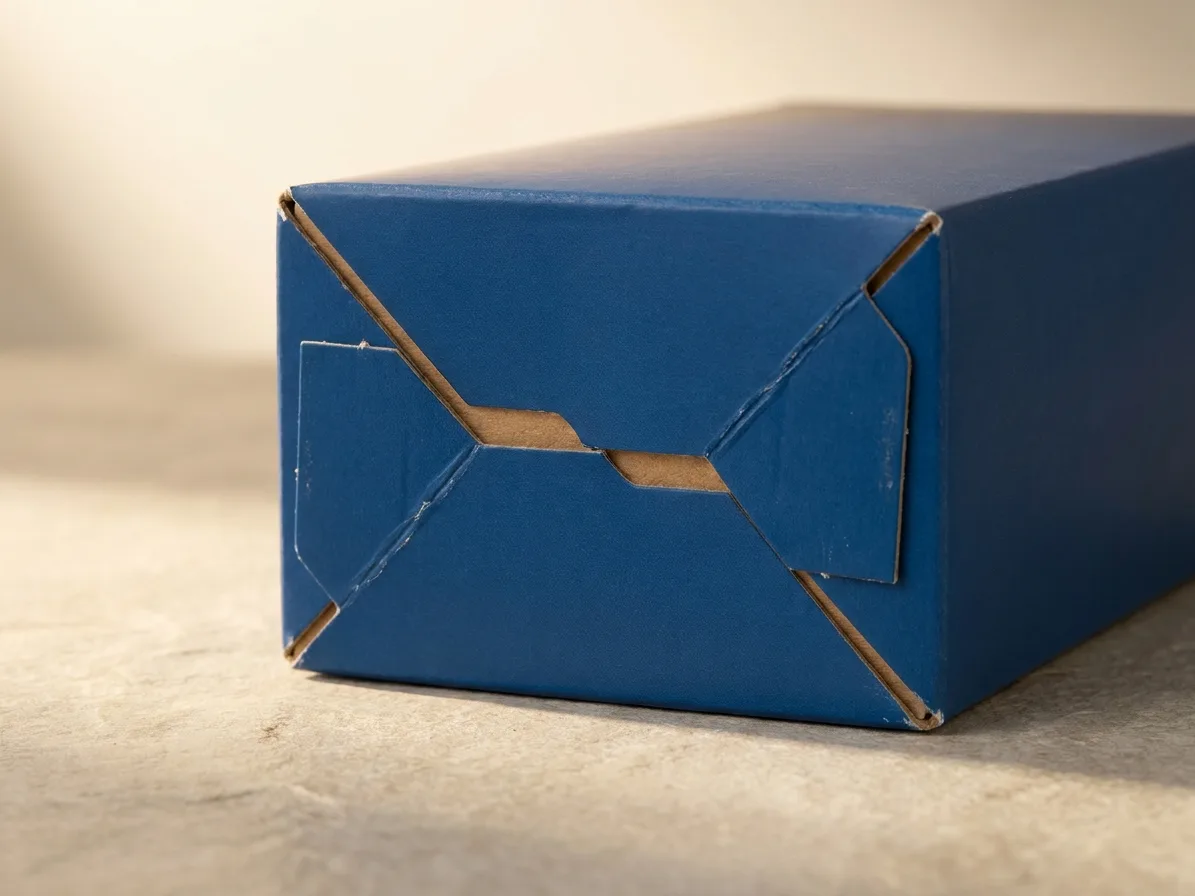

An auto lock bottom carton — also called a crash lock base — has its base panels pre-glued at the factory in an interlocking pattern. When the flat carton is squared up, the base folds itself into a locked floor in one motion. There is nothing to tuck and nothing to tape.
Two benefits follow. Packing is faster, because the slowest part of erecting a tuck carton is closing the base. And the base is considerably stronger, because the panels interlock and support each other rather than relying on a friction tuck.
Anything with real weight in it — a glass bottle, a jar, a set of items — is a candidate for this construction.
Customisation options
Construction, board, print and finishing are all specified per project. If something you need is not listed, ask — most requirements can be produced in house.
Folding carton
Custom sizes available
- Coated paperboard (FBB/SBS)
- Kraft board
- Coated art paper
- Specialty / textured paper
- CMYK process printing
- Pantone spot colour
- CMYK plus spot colour
- Matte lamination
- Gloss lamination
- Soft-touch lamination
- Foil stamping
- Embossing
- Debossing
- Spot UV
- Paperboard insert
- No insert required
Board thickness is specified against the actual weight being carried rather than the carton size alone. Top closure can be a straight or reverse tuck, or a full flap.
If you know the filled weight of the carton, include it with your enquiry — it is the single most useful number for specifying this construction correctly.
Why choose a auto lock bottom box
Faster to pack
The base locks itself. On a manual packing line that removes the slowest step in erecting a carton.
Carries real weight
Interlocking base panels support each other, so the floor does not push open under load the way a tucked base can.
No tape at the base
The base is finished as it locks, which keeps the outside of the carton clean and avoids a consumable.
Produced at our Ajman facility
Printed, finished and die cut, then glued in two operations: the side seam and the base lock pattern. The base glue pattern is the more exacting of the two, because the panels have to release cleanly and lock square when the carton is squared up.
All production at our Ajman facility, supplied flat.
Where this packaging is used
- Bottled and jarred products
- Home fragrance and candles
- Food and beverage retail
- Electronics
- Multi-item retail sets
Frequently asked questions
Does an auto lock bottom carton still ship flat?
Yes. The base is glued but not formed, so the carton lies flat until it is squared up. Storage and freight volume are the same as any other folding carton.
How much weight can it hold?
That depends on board thickness and carton dimensions rather than the base style alone, but for any given board an auto lock base carries considerably more than a tucked base. Tell us the filled weight and we will specify the board to suit.
Is it more expensive than a tuck end carton?
Slightly, because of the additional glue operation. Where products have weight, the reduction in packing time and in damaged units usually outweighs the difference.
What closes the top?
Usually a straight or reverse tuck. Where the top also needs to be secure, a full flap top closed with a label or tape seal is an option.
Related packaging
Straight Tuck End Box
A folding carton where both flaps tuck in from the same side, leaving the front panel completely uninterrupted.
Reverse Tuck End Box
The most economical tuck carton — flaps fold from opposite panels, using less board and closing faster by hand.
Window Box
A printed carton with a die cut aperture, so the product does the selling on shelf.
Request a quotation for Auto Lock Bottom Box
Tell us your size, quantity, material and finish. Send artwork if you have it — if not, our design team can prepare the dielines and artwork for you.
