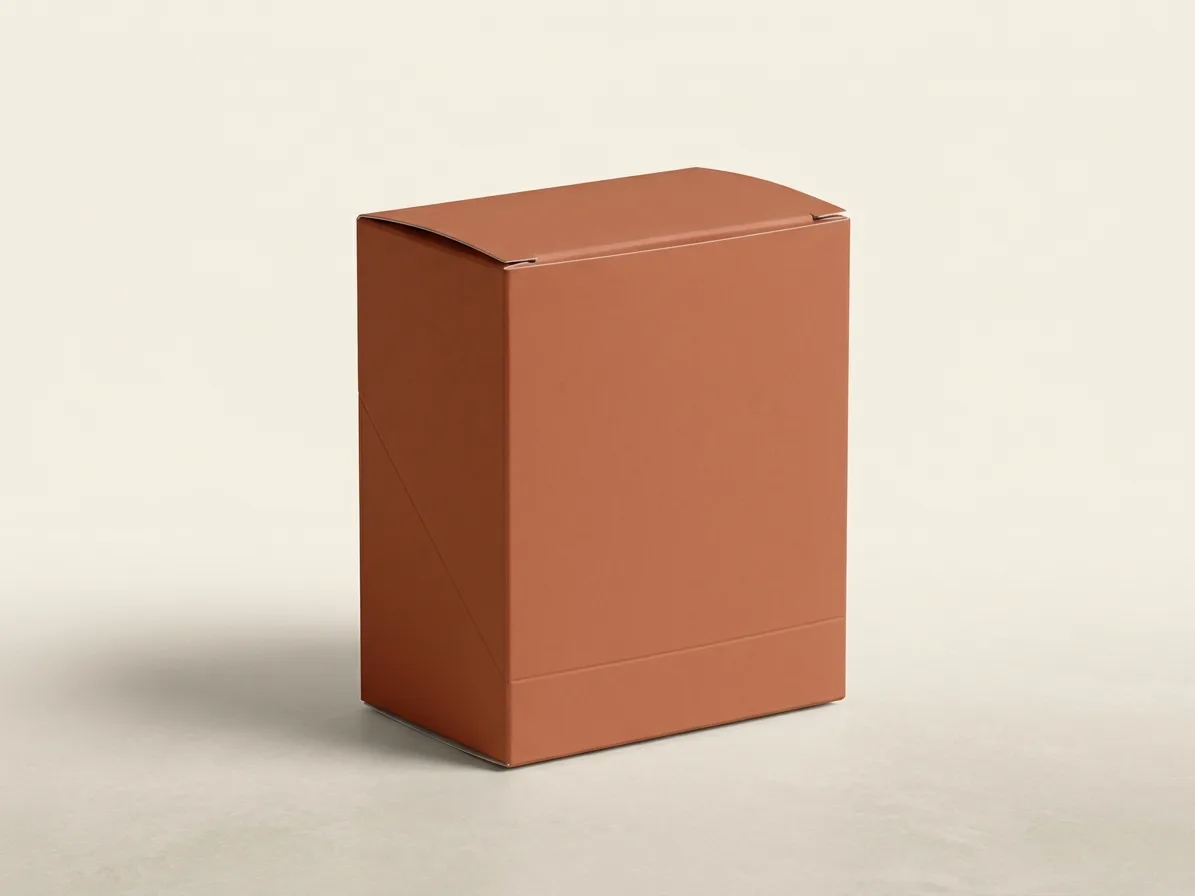

Reverse Tuck End Box
The most economical tuck carton — flaps fold from opposite panels, using less board and closing faster by hand.
- Folding carton
- Custom sizes available
- Made in the UAE
- Flaps fold from opposite panels
- More efficient board usage than straight tuck
- Quicker manual closing
- Ships flat, side seam glued
- Window, hang hole and partition options
Every order is manufactured to your specification. Send your sizes, artwork or a reference sample and we will quote materials, construction and finishing.
Reference: VAL-FC-RTE
About Reverse Tuck End Box

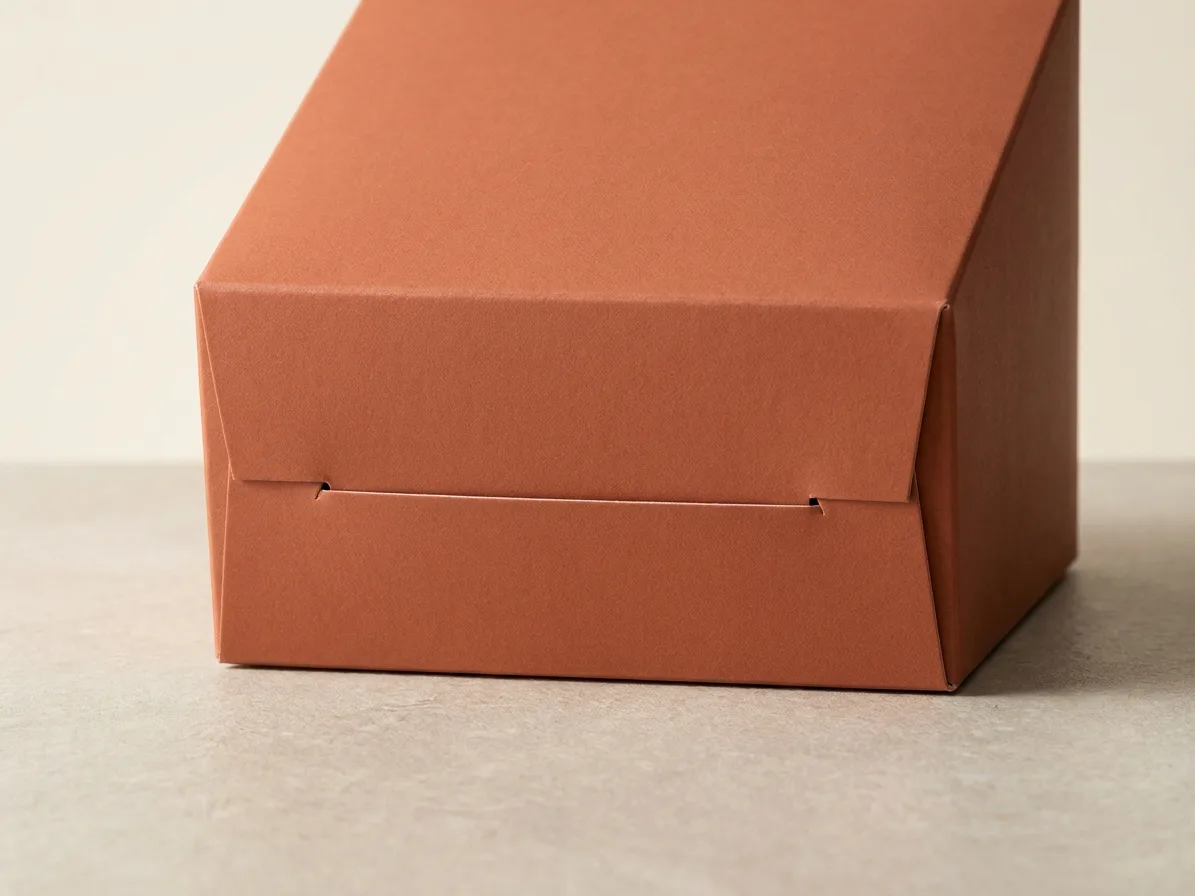

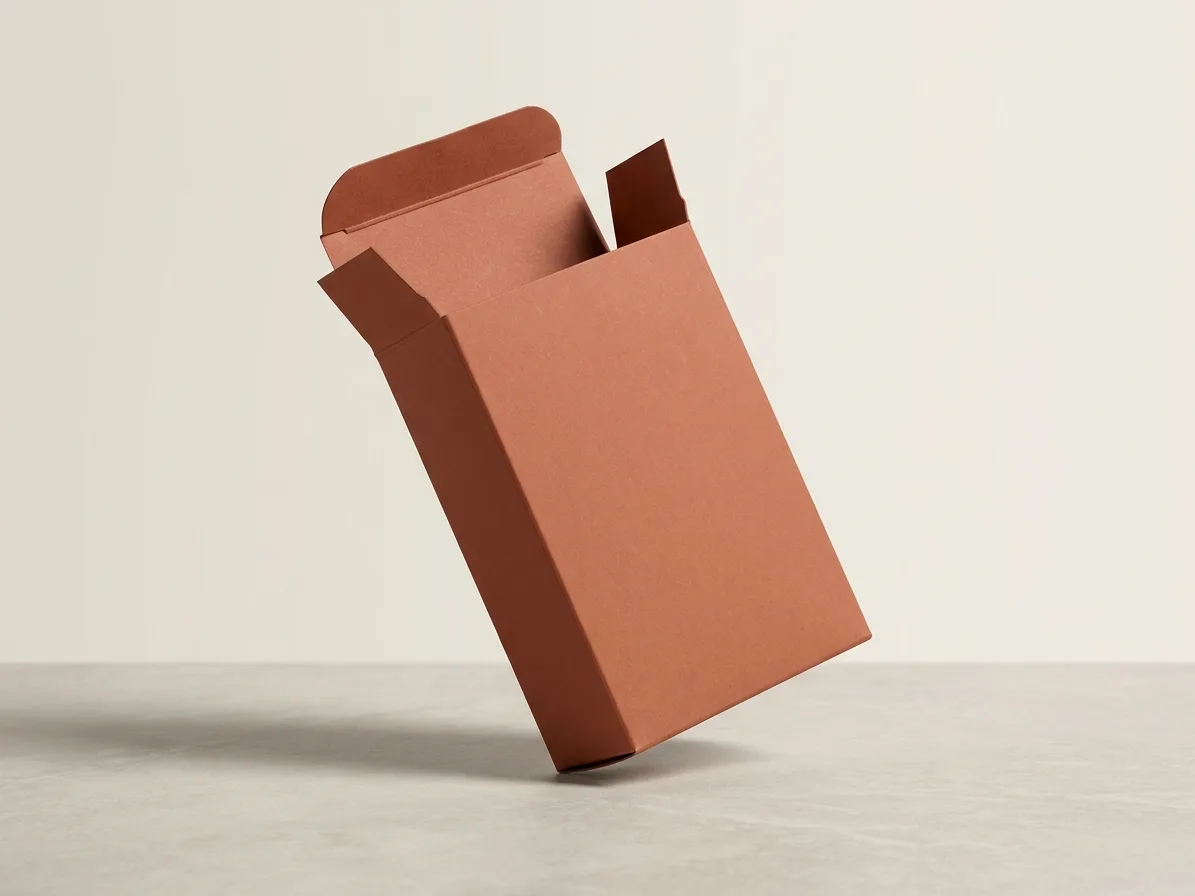

On a reverse tuck end carton the top flap folds in from the rear panel and the bottom flap from the front. Laying the flaps out in opposite directions lets the dieline nest more efficiently on the sheet, so the same carton uses less board than its straight tuck equivalent.
Across a long run that difference is worth having, and it is why RTE is the default for high-volume retail cartons where the front panel does not need to be completely uninterrupted.
It is also marginally quicker to close by hand, because the closing motion alternates rather than repeating from the same side — a small thing that adds up over a packing shift.
Customisation options
Construction, board, print and finishing are all specified per project. If something you need is not listed, ask — most requirements can be produced in house.
Folding carton
Custom sizes available
- Coated paperboard (FBB/SBS)
- Kraft board
- Coated art paper
- Specialty / textured paper
- CMYK process printing
- Pantone spot colour
- CMYK plus spot colour
- Matte lamination
- Gloss lamination
- Soft-touch lamination
- Foil stamping
- Embossing
- Debossing
- Spot UV
- Paperboard insert
- No insert required
Because RTE is usually chosen on cost, it is worth quoting alongside straight tuck at your actual size and quantity — the saving varies with how the dieline nests on the sheet.
Windows, hang holes and partitions are all available and are set on the dieline.
Why choose a reverse tuck end box
Lower board cost
The opposed flap layout nests more efficiently on the printing sheet, which reduces board usage on every carton.
Faster hand packing
The alternating close is slightly quicker to work through than tucking twice from the same side.
Same finishing options
Lamination, foil, emboss and spot UV are all available exactly as on a straight tuck carton.
Produced at our Ajman facility
Printed, coated or laminated, die cut, stripped and side-seam glued at our Ajman facility, then supplied flat.
We check the dieline against your product dimensions and supply a sample for approval before production.
Where this packaging is used
- Retail and FMCG
- Pharmacy and supplements
- Personal care
- Household products
- Electronics accessories
Frequently asked questions
How much does reverse tuck save over straight tuck?
It depends on the carton size and how the dieline nests on the sheet, so there is no single figure. On long runs it is usually a saving worth taking. Ask us to quote both at your size and quantity and the difference will be explicit.
Is the front panel affected?
Slightly. The bottom flap folds in from the front panel, so there is a flap edge at the base of the front face. On most retail cartons it is not noticeable, but if the front is a pure brand surface, straight tuck is the better choice.
Can reverse tuck cartons hold heavy products?
For heavier contents an auto lock bottom is the more appropriate construction, because a tucked base can be pushed open under load. Tell us the weight and we will advise.
Do you supply a dieline?
Yes. We prepare the dieline or check one you already have against the product dimensions before the cutting die is made.
